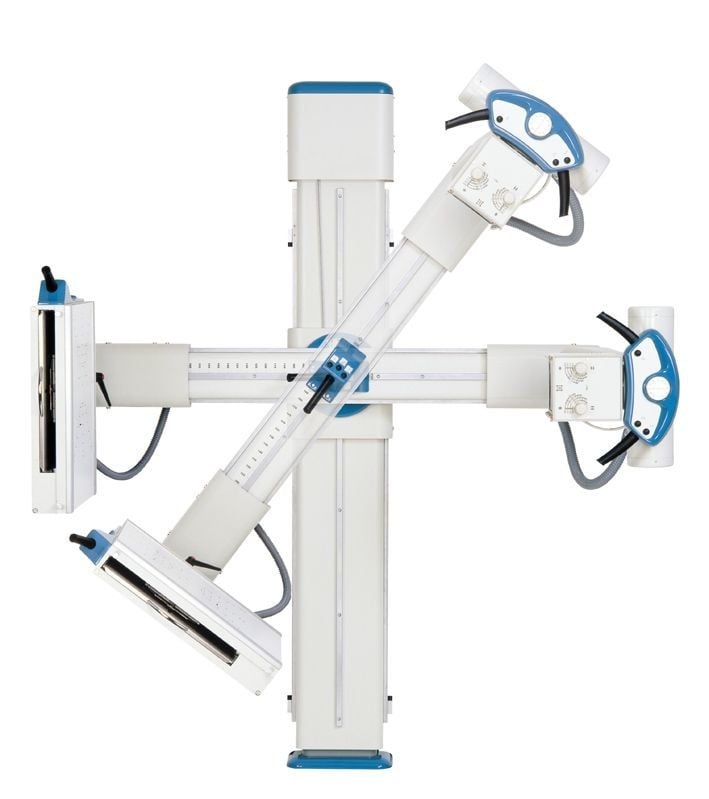

Viztek Straight Arm System

Viztek - X-Ray - Straight Arm System [EQ-016518]

  • Straight Arm Movements:
    Motorized variable SID distance, adjustable between 39.4 to 70.9 inches
    Swivel arm range of rotation: 135 degrees with detents on 30,0,90,120 degrees
    Swivel arm motorized vertical movement: 39 inches
    Minimum floor to detector center distance: 27.6'
    Detector Angulations: 45/-45 degrees
    Manual collimator with 6 pair of blades
    Accessory rails (cones, filters, etc)
    Field light lamp (light of the lamp 160lux)
    Light indicator for alignment with the bucky with lamp timing
    Retractable measuring tape
    Low Speed Starter(3000 RPM)for one X-Ray tube:
    Starter for anode rotation of one x-ray tube of equal or different impedance
    Rotation control of the anode at low speed:3.000 R.P.M.(60Hz) 10.000 R.P.M(180Hz) in function of the selected power
    Anode Rotation Brake control
    Time delay of the brake in function of the sequence of exposure selected
    High Tension Cables (2)9 meters Ultra Flexible High Tension Cables
    SHF415 Single Phase 40kW Generator Features:
    High Frequency 25KHz,1 tube operation
    Microprocessor controlled with auto diagnostic and error code indication for easy maintenance
    Single phase 220/240 VAC(specify prior to order)
    Output power: 500mA @80 kVp, 400mA @100 kVp, 320mA @125 kVp,500mA @150 kVp
    Automatic line compensation /-10%
    X-ray tube overload protection
    X-ray tube H.U. available indication and continuous monitoring for x-ray tube protection
    Control of x-ray tube number of exposures
    Hand switch for preparation and exposure control
    Light and sound indication for x-ray exposure
    kVp Radiographic range, from 40 to 150 kVp in 1 kVp step
    mA Radiographic range from 10 to 500mA in 18 step,
    mAs range from 0.1 to 500 mAs in 38 steps
    Exposure time range from 1 ms to 10 seconds,41 Time Station
    X-Ray Tube, Toshiba Model E7884X
    Maximum Tension,150 kVp
    Focus sizes: Small focus 0.6 mm (0.023) Large focus 1.2 mm (0.047)
    Maximum power: Small focus 20 KW Large focus 50 KW
    Maximum Current Small focus 290 mA Large focus 800 mA
    Anode degree target angle 12 degrees
    Anode heat capacity 300,000 HU
    Anode rotation 2,700/3,200 RPM
    Anode composition Rhenium,Tungsten and face Molybdenum
    Anode diameter 2.9
    Filtration equivalent 0.7AL
    Adaptation Kit for Ultra 17x17 Flat Panel Detector
    In-room rack
    Workstation power supply
    FDP power supply with special control
    Generator Interface Board

  • Manufacturer: Viztek
  • Modality: X-Ray
  • Model: Straight Arm System
