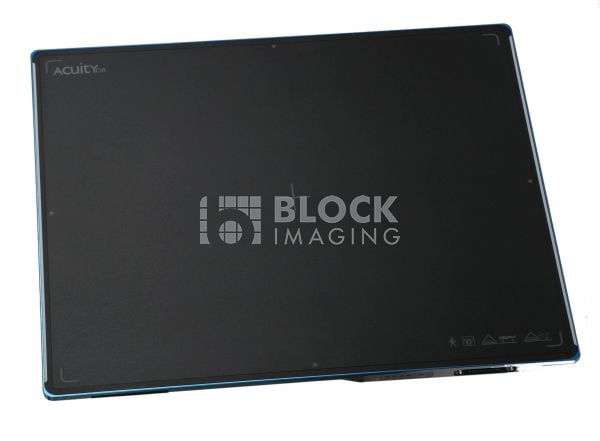

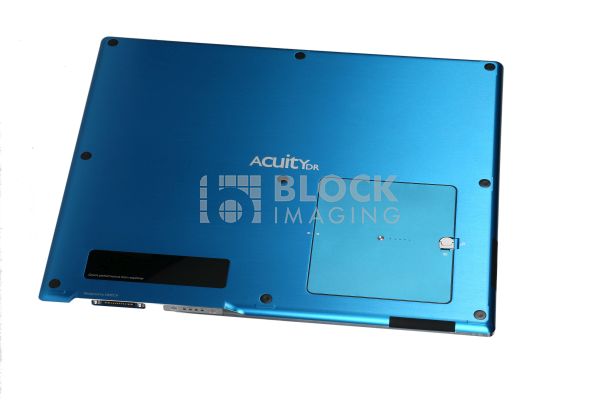

Other - X-Ray - Acuity DR Panel [EQ-017099]

• Detector: 10 x 12 Cassette Size
  Detector Type: TFT Gadox Flat Panel Detector
  Weight: 4.1 lbs with battery
  Pixel Pitch 76um
  Pixel Resolution: 3072 x3840 pixels
  Active Area 233.47 x 291.84 mm
  A/D conversion 14 bit
  Wireless: 1EEE 802.11n (5Ghz)
  Interface: Lossless AED
  High resistance to impact and vibration
  Wireless Charging - WPCS power System

  AccuVueMed Software Features
  Modern graphical user interface (GUI)
  Touchscreen operation – to ensure quick and efficient work and a smooth Workflow
  Diagnostic Tools: Zoom, Rotate, ROI selection, Measure,
  Angles, Customized Tool bar, Multi-image Display, Pan, Window Level/Window Width, and Text
  Integrated software for automatic image optimization
  Professional, adaptable image processing for each individual examination to obtain best possible image settings for the needs of each customer
  Image Export (.JPG, .TIF, .DCM, BMT,
  DICOM Send/Store (Multi-Destination)
  Modality Worklist, Stitching, CD/Burn
  Smart Switch Technology - Allows for multi-CPU connectivity (ie. dual workstations)
  TruViewArt Image Processing achieving 30% higher MTF

  AccuVueMed Thick Client Viewers – Podiatry
  Includes diagnostic viewing tools
  Includes Podiatry specialty tools

  DR Panel Workstation
  Dell: Precision T1700 Workstation or Similar
  Intel I 7 Processor
  (2) 1 TB Hard drives in a Raid 1 configuration
  8GB RAM CD/DVDR
  (2) Network interface Cards
  Monitor: 22inch Color Touch Screen Monitor with 10 point touch (1 year warranty)
  Long Lasting battery with low power consuming operating system
  Dual Battery Charger and two (2) batteries

  Warranty and Remote Support
  Detector: 36 months parts warranty for manufacture defects from
  the shipment date
  1 year remote software support
  Optional: Extend panel warranty from the point of sale to 5 years.

• Manufacturer: Other
• Modality: X-Ray
