Control-X - X-Ray - Apex Z-Motion U-Arm Digital Rad Room [EQ-017162]

  • CMP 200-50kw CPI Generator
    50kW, 600 mA, 150 kV, 630mA, .1 - 630 mAs high frequency generator.
    Power requirements: 3 x 208/230 or 3 x 400/480 VAC (please specify).
    Options include AEC and console pedestal.

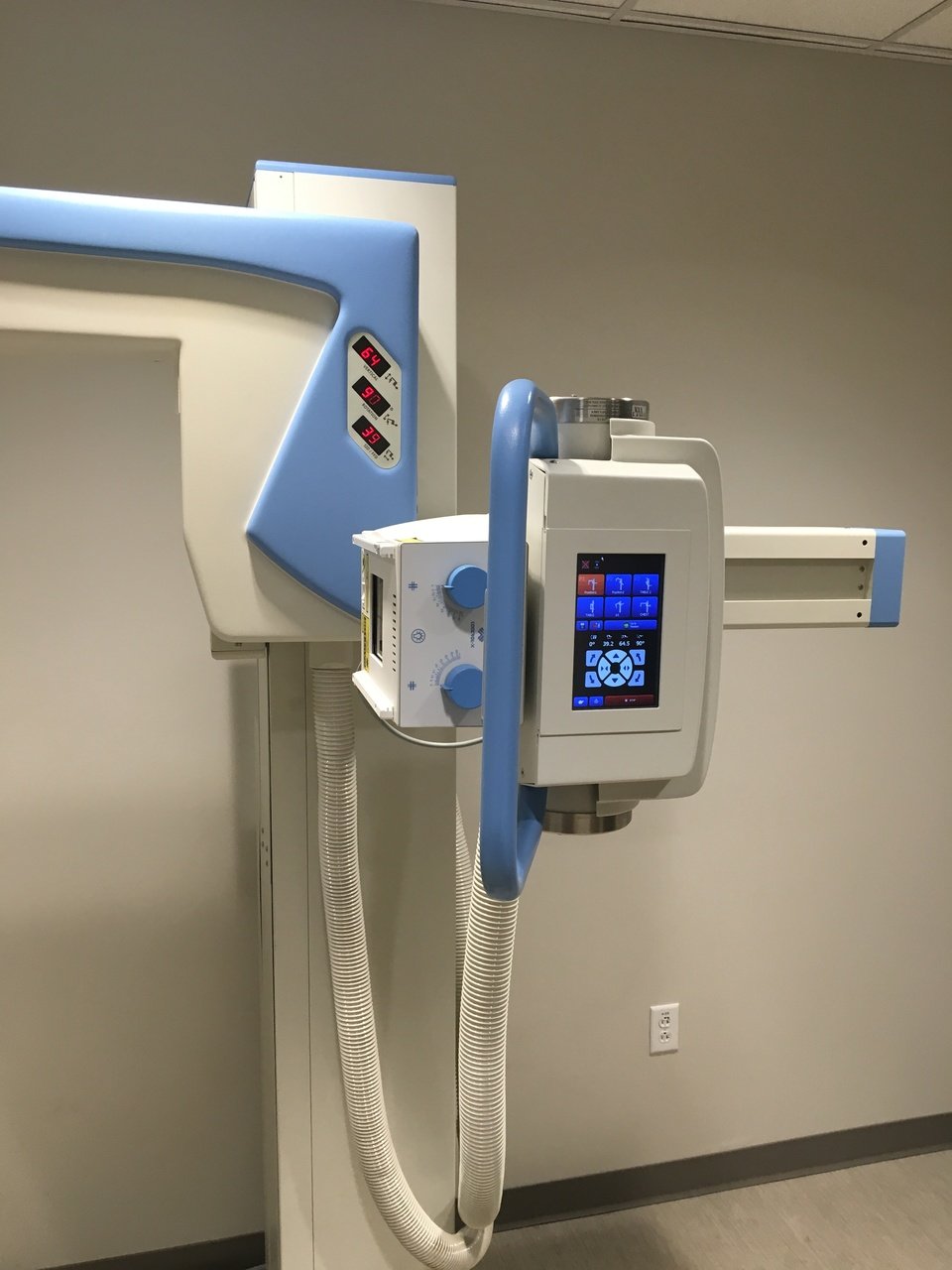

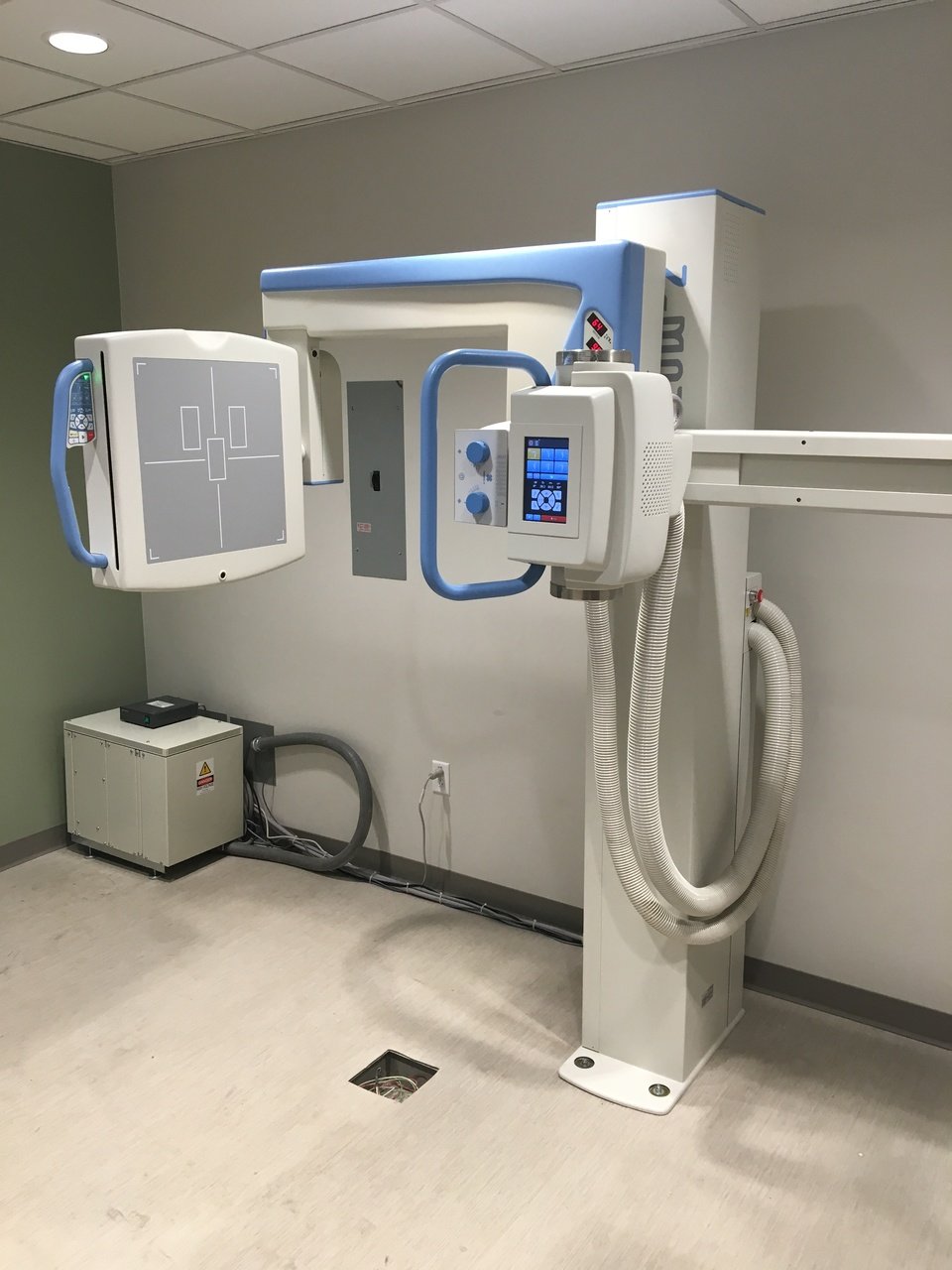

    Z-Motion (8600)
    The Z-Motion Universal Stand provides a new approach for practitioners to employ digital flat panel technology. Fully motorized and manual movements, counterbalanced for quick and quiet position changes. Minimum ceiling height required: 7'10". Vertical arm travel: 47.25", SID range: 39. - 79", Imager rotation: +/- 45 degrees. Z-Arm rotation: -30 to +120 degrees. Rotation of x-ray tube: +/- 90 degree. Voltage 100-240 VAC +/- 10% 50-60 Hz

    RAD 68 (15100-68)
    Diamond, 150 kVp, 300KHU X-Ray Tube, TM Target. Standard Speed. 0.6/1.2 or 1.0/2.0 Focal Spots, 14 deg. Target Angle. 38/66kW (3-phase Standard Speed). Supplied with 50' stator cable.1 year non-prorated warranty

    Ralco R-108 (R-108-724)
    R-108/724 Maual collimator with LED Field Indicator and Laser Pointer

    500-35 (200-35)
    35' H.V. cable pair with Federal terminals on both ends

    20010L17
    200 Line 10:1 ratio grid for 17" Buckys or Grid Cabinets. Focus range is 40-72"

    20010M17
    200 Line 10:1 ratio grid for 17" Buckys or Grid Cabinets. Focus range is 34-44”

    APEX Grid Frame
    Grid Frame with handle for use with Z-motion grids

    APEX Grid Frame
    Grid Frame with handle for use with Z-motion grids

    Prognost XS (PRN XS)
    Cantilever Style Portable Radiolucent Table with 77" x 25.75" Tabletop, fixed height 30" and locking casters

  • Manufacturer: Control-X
  • Modality: X-Ray
  • Model: Z-Motion
