Medical Imaging Equipment

We carry CT, MRI, PET/CT, C-arm, O-arm, Cath labs, X-rays, Mammo, and Ultrasound from major providers like Siemens, GE, Philips, Toshiba, Neusoft, Halogic, and more.

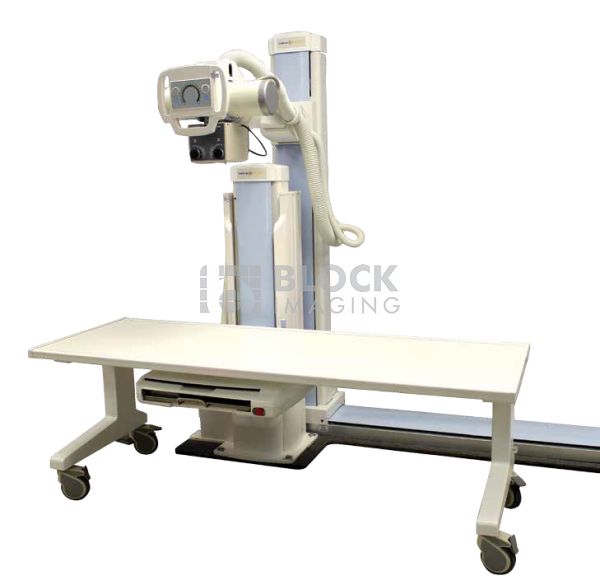

AmRad AA4 FRS-400M Rad Room

AmRad - X-Ray - Rad Room [EQ-017138]

  • AmRad Advantage Floor Rail System
    High Frequency Generator – 40kW
    1 Phase 208-230 or 3 Phase Input Power, 230-250V or 400-480VAC

    Mobile Radiographic Table (SST 1000)
    30 in. x 80 in. Flat, Seamless Table Top
    27.5 in. Table Height
    Hospital-grade Swivel Casters with Four Locks
    500 lb. Rated Patient Load
    Electrical Power not Required

    Floor Mount Tubestand (SST 3001)
    Floor Mount, Non-rotating Tubestand (82.25 in. Tall)
    95.5 in. x 17 in. (Includes Travel Track) Floor Rail Assembly
    106 in. (8 ft. 10 in. ) Total Length
    Fixed Length Tube Arm with Manual X-ray Tube Rotation for Centering to Wallstand
    Angulation Dial, Operator Handgrips, and Electric Positioning Locks
    6 in. Trunnion Tube Mount with Cooling Fan for X-ray Tube (6.75 in. Trunnion for 65kW and 80kW)

    Wallstand
    Heavy-duty Wallstand with Motorized Vertical Travel, Rotating Center-mount Enclosure for CR or DR Applications (must specify at time of order)
    Manual Rotating Enclosure with Angulation Gauge in 5 Degree Increments
    Footswitch and Column Button Actuation for Motorized Vertical Travel
    Grid Cabinet, 18 in. x 18 Only
    8:1, 178 line, 40 - 72 in. (52 in) Focus Grid
    Heavy-Duty Cassette Tray (Not included with enclosure for Fixed DR)
    120 VAC, 50/60 Hz, 500 VA Power Required
    UL Classified

    X-ray Tube (E411)
    0.6-1.5 mm Focal Spots
    200,000 Heat Units

    Cables (J995)
    35 ft. High Voltage, 150 kVp

    Collimator (05658)
    Manual
    Laser Light Lines
    Tray Positioning Laser
    Light Field
    Tape Measure

    Manufacturers Warranty:
    X-Ray System Structures: 5 Years parts
    Generator: 5 Years parts
    X-Ray tube: 5 Years Prorated

  • Manufacturer: AmRad
  • Modality: X-Ray
AmRad AA4 FRS-400M Rad Room

AmRad - X-Ray - Rad Room [EQ-017138]

  • AmRad Advantage Floor Rail System
    High Frequency Generator – 40kW
    1 Phase 208-230 or 3 Phase Input Power, 230-250V or 400-480VAC

    Mobile Radiographic Table (SST 1000)
    30 in. x 80 in. Flat, Seamless Table Top
    27.5 in. Table Height
    Hospital-grade Swivel Casters with Four Locks
    500 lb. Rated Patient Load
    Electrical Power not Required

    Floor Mount Tubestand (SST 3001)
    Floor Mount, Non-rotating Tubestand (82.25 in. Tall)
    95.5 in. x 17 in. (Includes Travel Track) Floor Rail Assembly
    106 in. (8 ft. 10 in. ) Total Length
    Fixed Length Tube Arm with Manual X-ray Tube Rotation for Centering to Wallstand
    Angulation Dial, Operator Handgrips, and Electric Positioning Locks
    6 in. Trunnion Tube Mount with Cooling Fan for X-ray Tube (6.75 in. Trunnion for 65kW and 80kW)

    Wallstand
    Heavy-duty Wallstand with Motorized Vertical Travel, Rotating Center-mount Enclosure for CR or DR Applications (must specify at time of order)
    Manual Rotating Enclosure with Angulation Gauge in 5 Degree Increments
    Footswitch and Column Button Actuation for Motorized Vertical Travel
    Grid Cabinet, 18 in. x 18 Only
    8:1, 178 line, 40 - 72 in. (52 in) Focus Grid
    Heavy-Duty Cassette Tray (Not included with enclosure for Fixed DR)
    120 VAC, 50/60 Hz, 500 VA Power Required
    UL Classified

    X-ray Tube (E411)
    0.6-1.5 mm Focal Spots
    200,000 Heat Units

    Cables (J995)
    35 ft. High Voltage, 150 kVp

    Collimator (05658)
    Manual
    Laser Light Lines
    Tray Positioning Laser
    Light Field
    Tape Measure

    Manufacturers Warranty:
    X-Ray System Structures: 5 Years parts
    Generator: 5 Years parts
    X-Ray tube: 5 Years Prorated

  • Manufacturer: AmRad
  • Modality: X-Ray
