Medical Imaging Equipment

We carry CT, MRI, PET/CT, C-arm, O-arm, Cath labs, X-rays, Mammo, and Ultrasound from major providers like Siemens, GE, Philips, Toshiba, Neusoft, Halogic, and more.

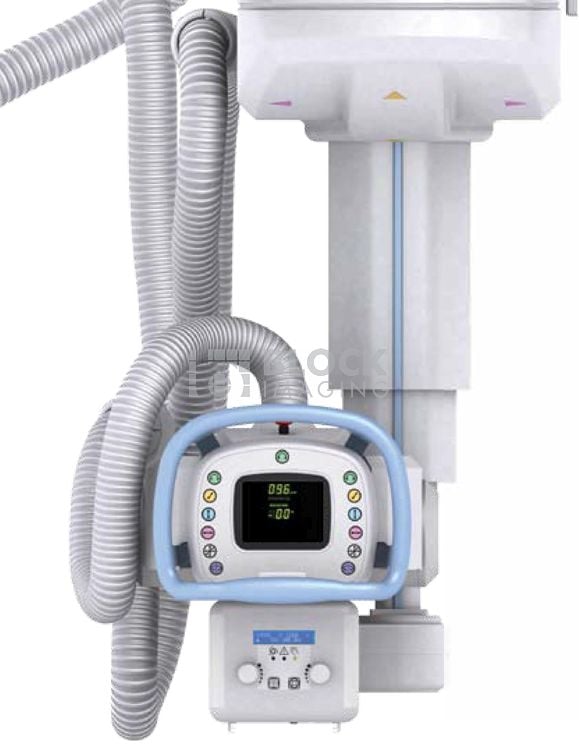

AmRad AA2 OTS – 800DR Rad Room

AmRad - X-Ray - Rad Room [EQ-017133]

  • AmRad Advantage Overhead Tube System
    High Frequency Generator – 80kW,
    Operates from 400-480V Electric Service

    Elevating Radiographic Table (S222)
    Deluxe Elevating 4-way Float-top Table (23 in. – 34 in.)
    650 lb. Rated Patient Load with Collision Protection
    +/-5 in. Transverse Travel, 32 in. Longitudinal Travel
    84 in. x 30 in. Table Top
    17 in. Par-Speed Bucky with Electric Lock, 18.5 in. Travel
    Grid: 10:1 Ratio, 103 LPI
    Heavy-duty Deluxe Cassette Tray 06338

    Overhead Tube Support (J309)
    Ceiling Mount Tube Support
    167 in. Ceiling Rails
    Tube travel: 140 in. Longitudinal, 94 in. Transverse, 60 in. Vertical
    Tube Rotation: Horizontal axis +/- 120° with 90° Detents, Vertical Axis of
    +/- 150° with 90° Manual Detents
    Digital Continuous SID Readout to Table, Discrete 40 in. and 72 in. SID Readout to Wall
    Digital Angulation Indicator, Operator Handgrips,

    Wallstand (J1000)
    Heavy-duty, Center-mount or Flag-mount Wallstand
    (Please Specify Right or Left Hand Load at Time of Order)
    Par-Speed Bucky, 17 in. x 17 in.
    Grid: 10:1 ratio, 103 LPI
    Heavy-duty Deluxe cassette tray 06338
    Electric locks
    PA Grips (2 with Center-mount Style, 1 with Flag-mount Style)

    X-ray Tubes (J986)
    Rad 56 Varian
    0.6 - 1.2mm FS, 4000,000
    4 in. Anode X-ray Tube

    Cables (J995)
    50 ft. High Voltage, 150 kVp

    Collimator (05658)
    Manual
    Laser Light Lines
    Tray Positioning Laser
    Light Field
    Tape Measure

    Manufacturers Warranty:
    X-Ray System Structures: 5 Years parts
    Generator: 5 Years parts
    X-Ray tube: 5 Years Prorated

  • Manufacturer: AmRad
  • Modality: X-Ray
AmRad AA2 OTS – 800DR Rad Room

AmRad - X-Ray - Rad Room [EQ-017133]

  • AmRad Advantage Overhead Tube System
    High Frequency Generator – 80kW,
    Operates from 400-480V Electric Service

    Elevating Radiographic Table (S222)
    Deluxe Elevating 4-way Float-top Table (23 in. – 34 in.)
    650 lb. Rated Patient Load with Collision Protection
    +/-5 in. Transverse Travel, 32 in. Longitudinal Travel
    84 in. x 30 in. Table Top
    17 in. Par-Speed Bucky with Electric Lock, 18.5 in. Travel
    Grid: 10:1 Ratio, 103 LPI
    Heavy-duty Deluxe Cassette Tray 06338

    Overhead Tube Support (J309)
    Ceiling Mount Tube Support
    167 in. Ceiling Rails
    Tube travel: 140 in. Longitudinal, 94 in. Transverse, 60 in. Vertical
    Tube Rotation: Horizontal axis +/- 120° with 90° Detents, Vertical Axis of
    +/- 150° with 90° Manual Detents
    Digital Continuous SID Readout to Table, Discrete 40 in. and 72 in. SID Readout to Wall
    Digital Angulation Indicator, Operator Handgrips,

    Wallstand (J1000)
    Heavy-duty, Center-mount or Flag-mount Wallstand
    (Please Specify Right or Left Hand Load at Time of Order)
    Par-Speed Bucky, 17 in. x 17 in.
    Grid: 10:1 ratio, 103 LPI
    Heavy-duty Deluxe cassette tray 06338
    Electric locks
    PA Grips (2 with Center-mount Style, 1 with Flag-mount Style)

    X-ray Tubes (J986)
    Rad 56 Varian
    0.6 - 1.2mm FS, 4000,000
    4 in. Anode X-ray Tube

    Cables (J995)
    50 ft. High Voltage, 150 kVp

    Collimator (05658)
    Manual
    Laser Light Lines
    Tray Positioning Laser
    Light Field
    Tape Measure

    Manufacturers Warranty:
    X-Ray System Structures: 5 Years parts
    Generator: 5 Years parts
    X-Ray tube: 5 Years Prorated

  • Manufacturer: AmRad
  • Modality: X-Ray
