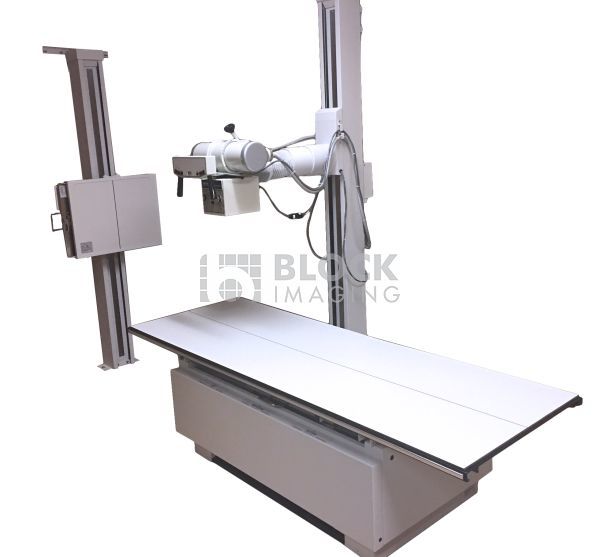

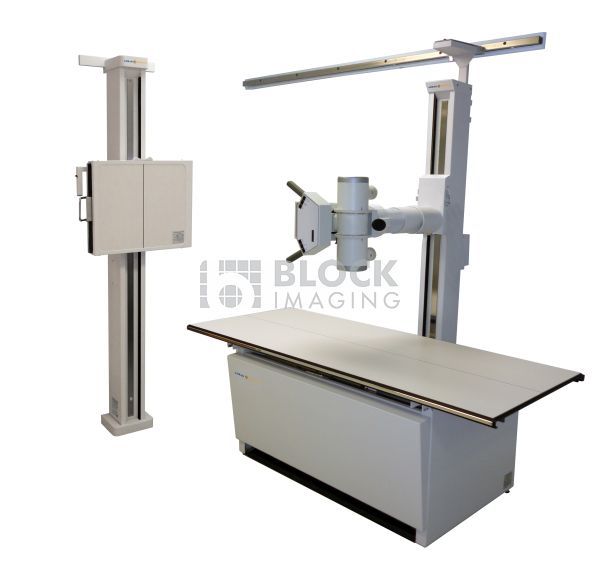

AmRad Classic AC400 FWFC Rad Room

AmRad Classic AC400 FWFC Rad Room

AmRad 400STU High Frequency Generator
• Stand-Alone
• Radiographic kVp: 40-125/150 in 1 kVp steps (150 kVp optional, see options)
• Anatomical Programming
• mA Range: 10-500
• Power Output: 500 mA @ 80 kVp ,400mA @ 100 kVp, 320 mA @ 125kVp
• Exposure Time Range: 0.001-10 seconds
• mAs Range: 0.1-500 mAs
• Operator Console with APR
• Hand Switch and Pedestal
• Single phase, 110-240 VAC (±10%), 20 Amp electrical service
• Storage Capacity: 67,500 mAs @ 100 kV
• Low-Speed Starter

S210 Four-Way Float-Top Table
• Four-way float top table with foot treadle control
• 400 lb. rated patient load
• +/- 5 in. transverse travel, 32 in. longitudinal travel
• 84 in. x 30 in. table top, table height 31.5 in.
• 17 in. Grid Cabinet
• Grid: 10:1 ratio, 103 LPI
• Heavy-Duty Deluxe cassette tray 06338

S225 Transverse Rotational Tubestand
• Floor-to-wall or floor-to-ceiling mount with 8 ft. rails
• Rotational base, +/- 360° with 90° detents
• Transverse tubearm +/- 5 in., platform tube mount
• Angulation dial, operator handgrips, and electric locks

S109 Wallstand Package
• Counterbalanced column, floor-to-wall mounted
• Grid Cabinet, 17 in. x 17 in.
• Grid: 10:1 ratio, 103 LPI
• Heavy-Duty Deluxe cassette tray 06338
• Specify left or right load
• Electric locks

Standard X-Ray Tube (Specified by kW rating)
• 0.6-1.5 mm focal spots, 200,000 heat units (40 kW and 42 kW generator) –
E411

Cables J995
• 25 ft. High Voltage cables, 150 kVp

07385 Collimator Ralco 221
• Certified 150 kVp manual collimator with swivel mount
• LED light field and tape measure
• Transverse laser alignment to receptor tray

Warranty:
Structure: 5 years, parts
Generator (STU): 3 years parts with 3 years prorated on the Batteries
Tube: 5 years prorated
