AmRad AA2 OTS – 800DR Rad Room

AmRad AA2 OTS – 800DR Rad Room

AmRad Advantage Overhead Tube System
High Frequency Generator – 80kW,
Operates from 400-480V Electric Service

Elevating Radiographic Table (S222)
Deluxe Elevating 4-way Float-top Table (23 in. – 34 in.)
650 lb. Rated Patient Load with Collision Protection
+/-5 in. Transverse Travel, 32 in. Longitudinal Travel
84 in. x 30 in. Table Top
17 in. Par-Speed Bucky with Electric Lock, 18.5 in. Travel
Grid: 10:1 Ratio, 103 LPI
Heavy-duty Deluxe Cassette Tray 06338

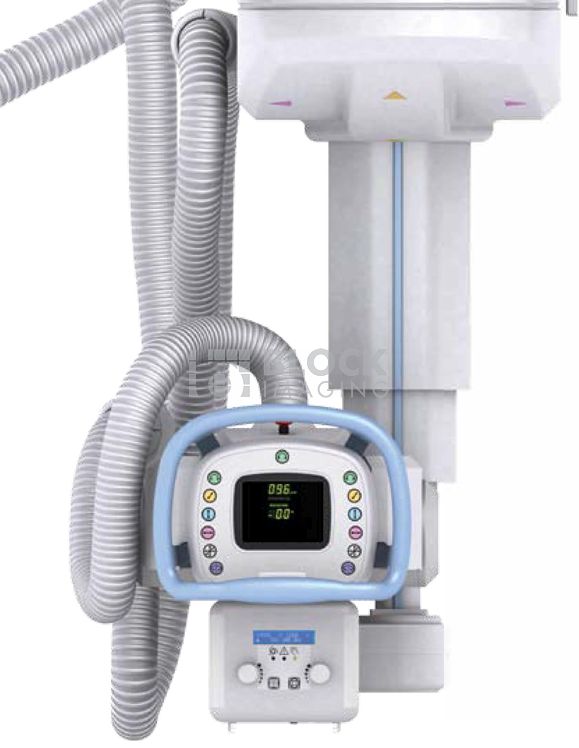

Overhead Tube Support (J309)
Ceiling Mount Tube Support
167 in. Ceiling Rails
Tube travel: 140 in. Longitudinal, 94 in. Transverse, 60 in. Vertical
Tube Rotation: Horizontal axis +/- 120° with 90° Detents, Vertical Axis of
+/- 150° with 90° Manual Detents
Digital Continuous SID Readout to Table, Discrete 40 in. and 72 in. SID Readout to Wall
Digital Angulation Indicator, Operator Handgrips,

Wallstand (J1000)
Heavy-duty, Center-mount or Flag-mount Wallstand
(Please Specify Right or Left Hand Load at Time of Order)
Par-Speed Bucky, 17 in. x 17 in.
Grid: 10:1 ratio, 103 LPI
Heavy-duty Deluxe cassette tray 06338
Electric locks
PA Grips (2 with Center-mount Style, 1 with Flag-mount Style)

X-ray Tubes (J986)
Rad 56 Varian
0.6 - 1.2mm FS, 4000,000
4 in. Anode X-ray Tube

Cables (J995)
50 ft. High Voltage, 150 kVp

Collimator (05658)
Laser Light Lines
Tray Positioning Laser
Light Field
Tape Measure

Manufacturers Warranty:
X-Ray System Structures: 5 Years parts
Generator: 5 Years parts
X-Ray tube: 5 Years Prorated
