Medical Imaging Equipment

We carry CT, MRI, PET/CT, C-arm, O-arm, Cath labs, X-rays, Mammo, and Ultrasound from major providers like Siemens, GE, Philips, Toshiba, Neusoft, Halogic, and more.

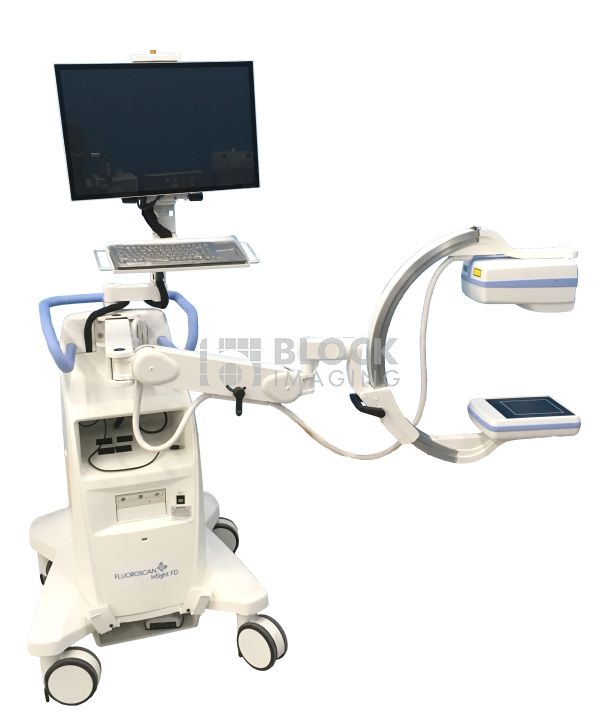

Fluoroscan Insight FD Flex Mini C-Arm

Fluoroscan - C-Arm - Insight FD (Flat Detector) C-Arm [EQ-016589]

  • Flat Detector: Thin profile, dual field
    Flat Detector axis rotation +/- 90 degrees
    High speed automatic beam collimator tracking
    Forward mounted tube-head: Deep C-arm access
    Power Range: 40-75 KVp, and 20-100 micro Amps
    Ultra fine image resolution with 45 micron focal spot X-ray source
    Automatic Dose Rate with auto calibration and Image Processing
    20” LCD / High Definition touch-sensitive flat screen monitor:
    Ergo-scopic monitor: Tilts and extends 16” for proper angle visualization
    Mosaic multi-format display, user preference 1-18 simultaneous images
    Full 120 degree orbital rotation C-arm with locking capability
    Laser light with full-time on or 60 second timer
    Advanced Image manipulation:
    Brightness & contrast control via tube-head, touch screen or keyboard
    Real-time noise suppression and edge enhancement
    Touch-screen image rotate, mirroring, pan, zoom & reverse video
    Customizable physician preference image acquisition
    Continuous fluoro and Snap-shot imaging
    Cine (Digital video) imaging with instant playback
    Easy-access, Sterile field tube-head mounted controls
    Comprehensive storage and networking
    Convenient USB and CD/DVD for image import/export
    Full DICOM network capability (Optional)
    8,000 image storage capacity with auto delete function
    “Mark as protected” image/case study protection
    DAP (Dose Area Product) report, standard
    Surgeon Friendly Ease of Use Features:
    Physician preference definable configurations
    Alphanumeric keyboard with hot-key operation
    Triple function configurable foot switch (Wireless or wired)
    InSight Wireless Foot Switch - Infrared wireless foot switch

  • Manufacturer: Fluoroscan
  • Modality: C-Arm
  • Model: Insight
Fluoroscan Insight FD Flex Mini C-Arm

Fluoroscan - C-Arm - Insight FD (Flat Detector) C-Arm [EQ-016589]

  • Flat Detector: Thin profile, dual field
    Flat Detector axis rotation +/- 90 degrees
    High speed automatic beam collimator tracking
    Forward mounted tube-head: Deep C-arm access
    Power Range: 40-75 KVp, and 20-100 micro Amps
    Ultra fine image resolution with 45 micron focal spot X-ray source
    Automatic Dose Rate with auto calibration and Image Processing
    20” LCD / High Definition touch-sensitive flat screen monitor:
    Ergo-scopic monitor: Tilts and extends 16” for proper angle visualization
    Mosaic multi-format display, user preference 1-18 simultaneous images
    Full 120 degree orbital rotation C-arm with locking capability
    Laser light with full-time on or 60 second timer
    Advanced Image manipulation:
    Brightness & contrast control via tube-head, touch screen or keyboard
    Real-time noise suppression and edge enhancement
    Touch-screen image rotate, mirroring, pan, zoom & reverse video
    Customizable physician preference image acquisition
    Continuous fluoro and Snap-shot imaging
    Cine (Digital video) imaging with instant playback
    Easy-access, Sterile field tube-head mounted controls
    Comprehensive storage and networking
    Convenient USB and CD/DVD for image import/export
    Full DICOM network capability (Optional)
    8,000 image storage capacity with auto delete function
    “Mark as protected” image/case study protection
    DAP (Dose Area Product) report, standard
    Surgeon Friendly Ease of Use Features:
    Physician preference definable configurations
    Alphanumeric keyboard with hot-key operation
    Triple function configurable foot switch (Wireless or wired)
    InSight Wireless Foot Switch - Infrared wireless foot switch

  • Manufacturer: Fluoroscan
  • Modality: C-Arm
  • Model: Insight
