Carestream - X-Ray - Wireless DR [EQ-016504]
3TB RAID1 PC (2x3TB)
16GB RAM
i-5 Processor w/23" Touchscreen LCD
IS4 provides image acquire, viewing, Chiro tools and image stitching as well as DICOM Print, DICOM ML, and Procedure Code Mapping functionality

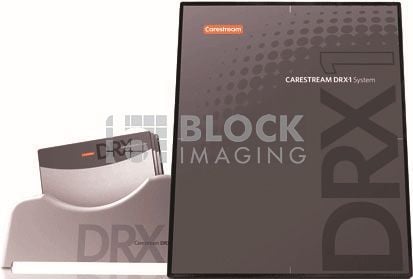

DRX Core Detector
Active Detection Area: 35.0 x 42.3cm
Dimensions: 38.35 x 45.95 x 1.47 cm
Weight: 3.4 kg (7.5 lb)
Scintillator: Amorphous Silicon on glass - no tiling
Conversion Screen: Deposited CsI (Tl)
Pixel Pitch/Size: 139um x 139um
Resolution: 3.6 lp/mm
Pixels: 2520 x 3032
Energy range: 40 -150 kV
Image Acquisition Time: 1.5 seconds
Network Protocol: TCP/IP, IPv4/IPv6
Network Type: Isolated Private Wireless LAN (WLAN) Enterprise Wireless
Wireless Protocol: 802.11 A -or- N -or- G
Includes:
Multi-Detector (2) Connection SCU/Power Supply Unit: 24VDC, 0.8A from a dedicated power supply
15m (45ft) Power Cord
Cat.6 Communication LAN Cable.
SCU/Power Unit can connect Two (2) Panels simultaneously
Acquisition Workstation Specs:
HP 1TB RAID1 (2x1TB HDD) Workstation, 16GB (4x4GB) 1600MHz DDR3 ECC UDIMM, Intel i5-4130 Processor (Dual Core, 3.40GHz 3MB, w/HD Graphics 4400), 16x DVD+/- RW, Windows 7 64-bit Pro, HP Three Year Next business day On-Site Service.
HP Monitor: 22” Touch screen LCD, 3 Year Warranty
Carestream Image Suite Acquisition Software:
AED Technology – Automatic Exposure Detection:
No generator interface required, AED sensors instantly detect X-ray signal upon exposure and acquires image for review and transfer of studies to PACS and/or view station(s).
DICOM Store/Transfer to PACS
Auto-Routing and Scheduled periodic back-up.
Image Preview - in 3 Seconds.
Customizable Anatomical exam tree & image processing factors
Image Acquisition + QC (brightness/contrast, flip, rotate, zoom, annotations, measurements, zoom, pan, window/level, mag, crop, invert, line measurement, angle measurement, text, arrow, L&R Markers, clockwise/counter-clockwise rotation, etc...
Patient Registration – Manual or DICOM Modality Worklist.
DICOM Modality Worklist is a standard feature and is available for use provided that the customer’s EMR/EHR/RIS
generates and send Modality Worklist messages.
Print: DICOM Printer or Desk Top Paper Printer
Stitching – Manual stitching mode
Archive: CD/DVD – Archive to removable drive.
Export Images as .jpg, .tiff, .bmp, and DICOM to CD or USB
Patient Size Selection: Pediatric, Small, Medium, Large Adult
Black Surround Fill
Image Suite v4 PACS Software: 4 Web CLs
Image Suite v4 is a robust image management software capable of storing an unlimited volume of image data. Easily backs up to USB connected storage devices and can accommodate multiple modality types. Provides 4 concurrent web view licenses with Advanced Chiro/Ortho tools included
Warranty and Support
3 Year Manufacturer's Warranty on DRX Core DR Panel
3 Year Onsite PC Warranty
1 Year Deluxe End-User Support- Manufacturer: Carestream
- Modality: X-Ray
