Medical Imaging Equipment

We carry CT, MRI, PET/CT, C-arm, O-arm, Cath labs, X-rays, Mammo, and Ultrasound from major providers like Siemens, GE, Philips, Toshiba, Neusoft, Halogic, and more.

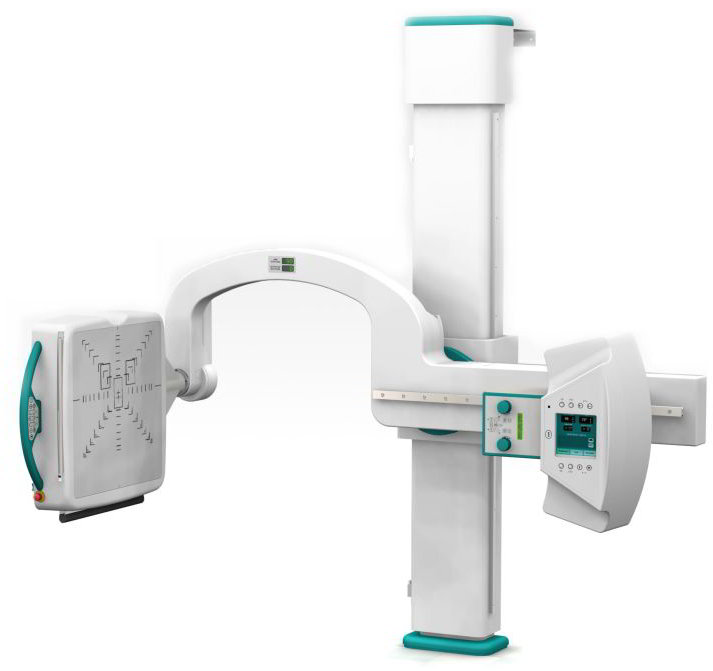

AmRad 500S Plus U-Arm System

AmRad - X-Ray - AAU System Rad Room [EQ-017106]

  • 25 kHz Constant Potential, 50 kW High Frequency (HF) generator
    kVp range: 40-150
    mA stations: 10-630
    mAs range: 0.1-500 mAs (other mAs available on request)
    Operates from 3 phase 220-240V or 400-480V electric service
    High Speed Booster for 300,000 heat units tube
    Universal Radiographic system AAU, fully motorized. auto-positioning, and touch-screen
    Adaptor for High Speed Bucky with cassette tray
    Manual collimator with LED light field, centering laser light line, timer and tape measure, rotates +/- 90 degrees
    X-ray tube Toshiba E7252X, 150kVp, 0.6-1.2 mm focal spots, 300,000 heat units
    Pair of high voltage cables 16 m / 52 foot
    Pair of high voltage cable covers 16 m / 52 foot
    Adapter for wall mounting - standard
    Standard cable set for AAU short 9 m / 30 foot

  • Manufacturer: AmRad
  • Modality: X-Ray
  • Model: AAU
AmRad 500S Plus U-Arm System

AmRad - X-Ray - AAU System Rad Room [EQ-017106]

  • 25 kHz Constant Potential, 50 kW High Frequency (HF) generator
    kVp range: 40-150
    mA stations: 10-630
    mAs range: 0.1-500 mAs (other mAs available on request)
    Operates from 3 phase 220-240V or 400-480V electric service
    High Speed Booster for 300,000 heat units tube
    Universal Radiographic system AAU, fully motorized. auto-positioning, and touch-screen
    Adaptor for High Speed Bucky with cassette tray
    Manual collimator with LED light field, centering laser light line, timer and tape measure, rotates +/- 90 degrees
    X-ray tube Toshiba E7252X, 150kVp, 0.6-1.2 mm focal spots, 300,000 heat units
    Pair of high voltage cables 16 m / 52 foot
    Pair of high voltage cable covers 16 m / 52 foot
    Adapter for wall mounting - standard
    Standard cable set for AAU short 9 m / 30 foot

  • Manufacturer: AmRad
  • Modality: X-Ray
  • Model: AAU
