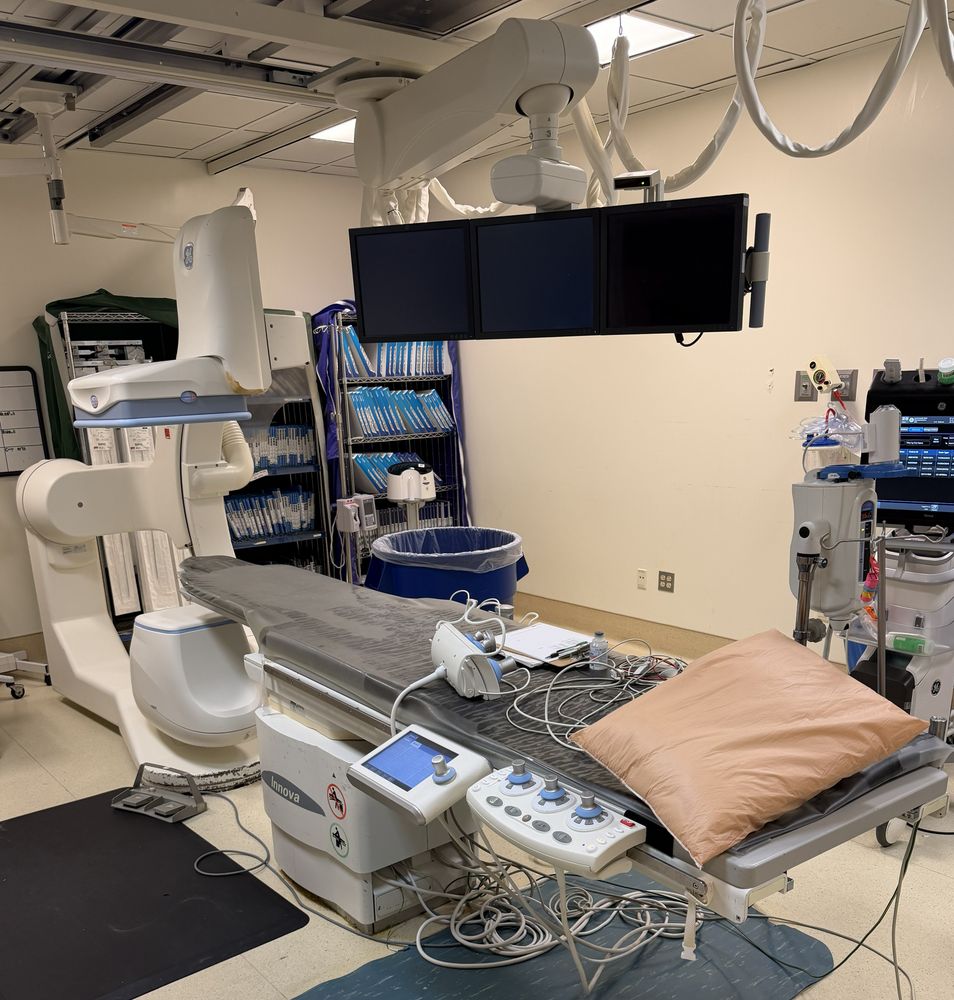

GE Innova Angiography System in a Procedure Room

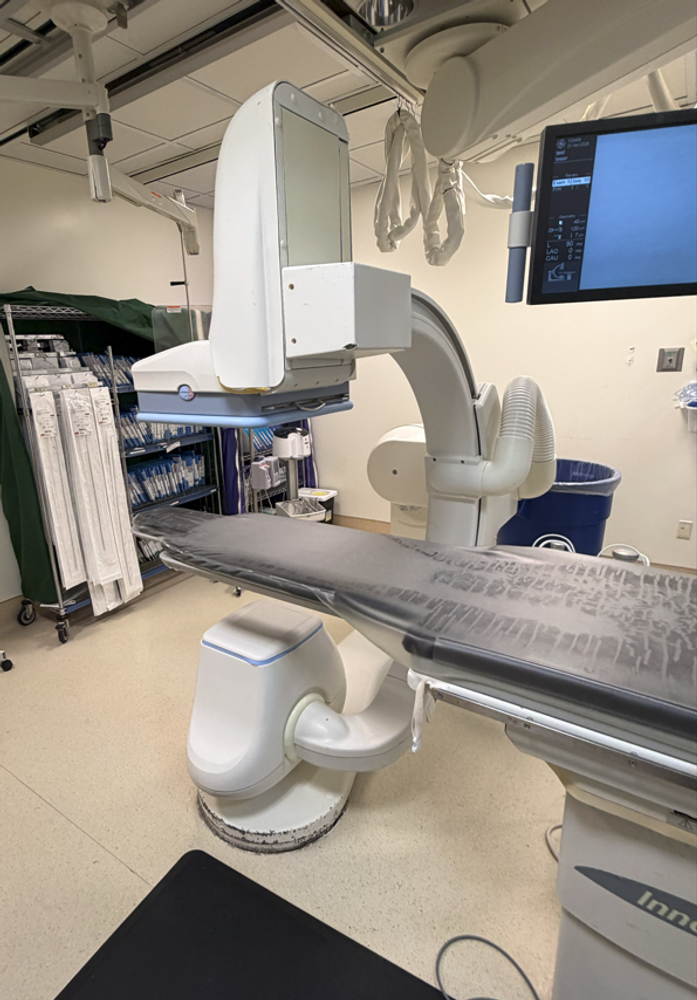

Screenshot2026_04_23105206_202642310572507_png

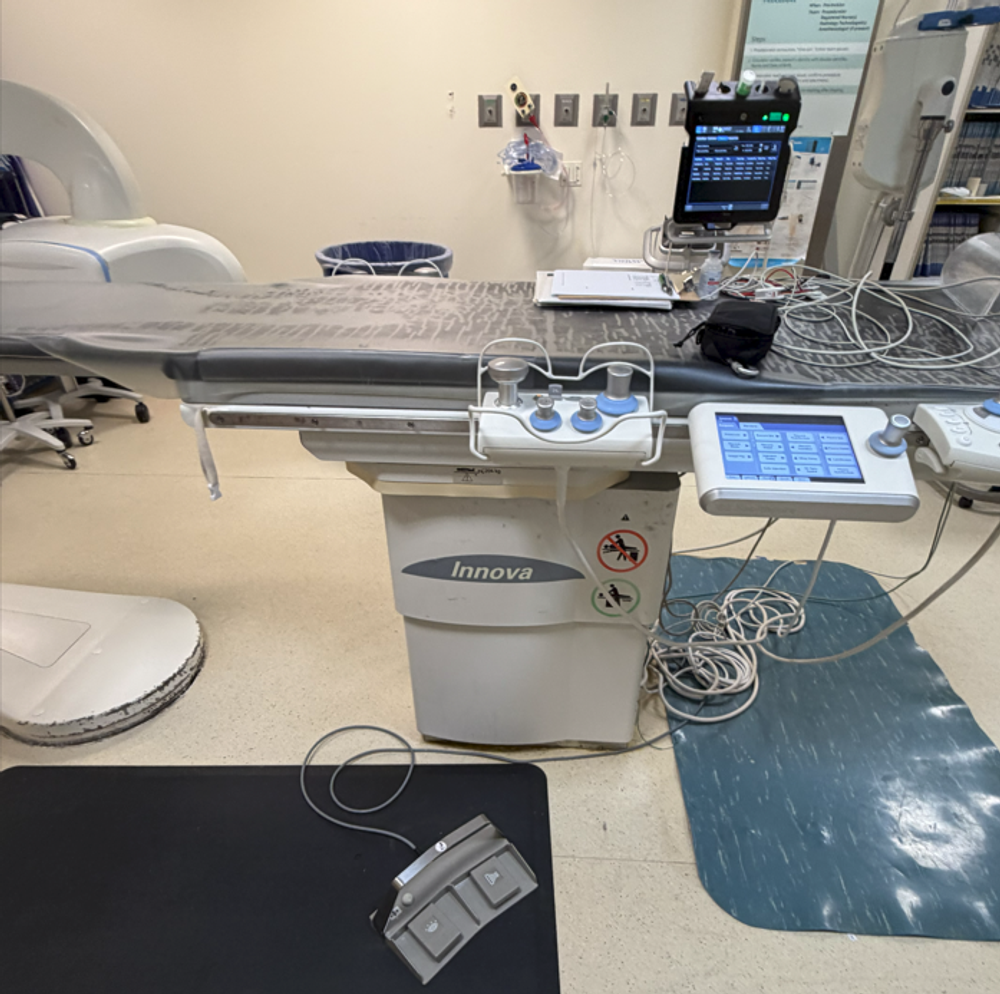

GE Innova Imaging System Table and Controls

2008 GE Innova 4100 IQ [EQ-025421]

2008 GE Innova 4100 IQ (EQ-025421)
Single Plane Imaging System
Completely Digital Imaging Chain
41cm Digital Flat Panel Detector with 40 x 40cm Active Area Field of View
GE Exclusive LC Positioner
3 Axis Isocentric Positioner with Floor Mounted L-Arm and offset C-arm
>> Provides Maximum Positioning Flexibility and Patient Access
100 kW High Frequency Generator with Grid Pulsed Fluoroscopy Capabilities
GE Performix 160A X-Ray tube – DOM 4/2024
Innova Angiographic Collimator
OMEGA V Motorized Table
>> Weight Limit up to 204kgs/450lbs
Coolix 4000 Closed Loop Re-Circulation Tube Cooling System
Thermo-Con Detector Conditioner
Overhead Monitor Suspension for 3 Standard LCD Monitors
GE Smart Box and Table Side System Control
Innova Central TouchScreen Unit
Standard Innova 4100 User Interface Package
Unity Software Level

Enabled Software Options:
DSA: ON
InRoom Browser, Innova Central Touch Screen, Fluoro Store, Motorized Table, Stenosis Analysis, WorkList, Cardiac, Innova Chase, Bolus
Manufacturer: GE
Modality: Cath/Angio
Model: Innova
Year of Manufacture: 2008

Request Pricing Quote

GE Innova Angiography System in a Procedure Room

Screenshot2026_04_23105206_202642310572507_png

GE Innova Imaging System Table and Controls

2008 GE Innova 4100 IQ [EQ-025421]

2008 GE Innova 4100 IQ (EQ-025421)
Single Plane Imaging System
Completely Digital Imaging Chain
41cm Digital Flat Panel Detector with 40 x 40cm Active Area Field of View
GE Exclusive LC Positioner
3 Axis Isocentric Positioner with Floor Mounted L-Arm and offset C-arm
>> Provides Maximum Positioning Flexibility and Patient Access
100 kW High Frequency Generator with Grid Pulsed Fluoroscopy Capabilities
GE Performix 160A X-Ray tube – DOM 4/2024
Innova Angiographic Collimator
OMEGA V Motorized Table
>> Weight Limit up to 204kgs/450lbs
Coolix 4000 Closed Loop Re-Circulation Tube Cooling System
Thermo-Con Detector Conditioner
Overhead Monitor Suspension for 3 Standard LCD Monitors
GE Smart Box and Table Side System Control
Innova Central TouchScreen Unit
Standard Innova 4100 User Interface Package
Unity Software Level

Enabled Software Options:
DSA: ON
InRoom Browser, Innova Central Touch Screen, Fluoro Store, Motorized Table, Stenosis Analysis, WorkList, Cardiac, Innova Chase, Bolus
Manufacturer: GE
Modality: Cath/Angio
Model: Innova
Year of Manufacture: 2008

Request Pricing Quote
