Medical Imaging Equipment

We carry CT, MRI, PET/CT, C-arm, O-arm, Cath labs, X-rays, Mammo, and Ultrasound from major providers like Siemens, GE, Philips, Toshiba, Neusoft, Halogic, and more.

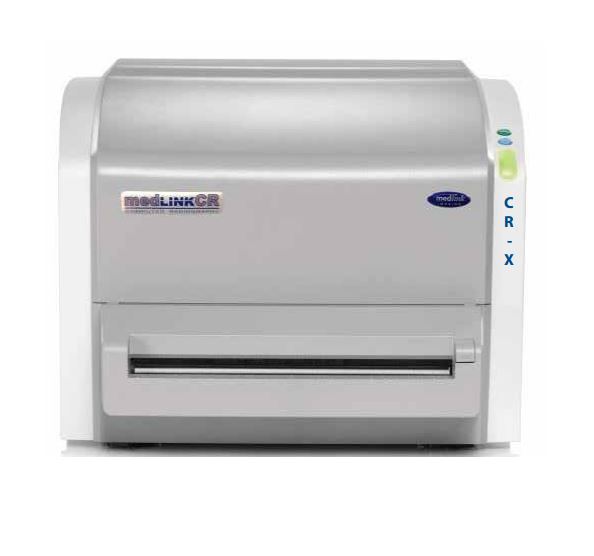

Medlink CR-X

Medlink - X-Ray - CR-X [EQ-017069]

  • Medlink CR-X Medical System - 34-pph @ 100 μ m Single Sized Cassette Feed (14x17), Includes Two (2) MD 1.0 14x17 (35x43) Cassettes
    Resolution: 3480x4248 (14.8MP)
    Data Acquisition: 20 bits/pixel
    Output to Processor: 16 bits/pixel
    Power: 120-240 VAC, 60 Hz
    Dimensions: 22.83 w x 27.56 d x 18.54 h
    Weight: 63 lbs.

    Acquisition Workstation
    Intel Core i3 Dual Core Processor 4330 (3.5GHz)
    4 GB, Non-ECC, 1333 MHz DDR3, OS Windows 7 64-bit
    1 TB hard disk in a Raid 1 (2 drives total)
    16x DVD +/- RW SATA optical drive
    Integrated Intel Graphics HD4600
    External datalink Bridge 1TB (RAID1) for Datalink Disaster Recovery
    Professional Monitor: 22 in. LCD, 2 MP, Resolution: 1920 X 1080 pixels, • Ratio: 1000:1 (typical)
    Acquisition Hardware – (3) Year Warranty included on Workstation and the Monitor

    Acquisition Software
    Viewers – 1 (LAN) Local Area Network and 2 (Web) Viewing Licenses
    DICOM Send - Multi Destination
    DICOM Print Image Archive
    CD/DVD Burning with Mini-Viewer
    DICOM Viewer with Robust Imaging Tool Sets Archive, Image Preview, Magnify, Zoom, Pan, Annotation Edit, Magnify, Zoom, Pan, Advanced Measurement and Specialty Chiropractic Measurement Tools, Window Level, Rotate, Repeat/Reject, L/R Marker, Un-sharp Mask.
    Disaster Recovery Service (DATALINK is included on all Medlink CR Systems) All systems are provided with a One Year 250GB (Approx. 24,000 14x17 Images or Approx. 8,000 Studies), Data Archive Service Plan with Automated and Monitored Backup to a Fully Managed HIPPA Compliant Disaster Recovery Service and includes a Licensed Datalink Bridge. Customer may increase the data plan at a fee and extend this service after year one.

  • Manufacturer: Medlink
  • Modality: X-Ray
Medlink CR-X

Medlink - X-Ray - CR-X [EQ-017069]

  • Medlink CR-X Medical System - 34-pph @ 100 μ m Single Sized Cassette Feed (14x17), Includes Two (2) MD 1.0 14x17 (35x43) Cassettes
    Resolution: 3480x4248 (14.8MP)
    Data Acquisition: 20 bits/pixel
    Output to Processor: 16 bits/pixel
    Power: 120-240 VAC, 60 Hz
    Dimensions: 22.83 w x 27.56 d x 18.54 h
    Weight: 63 lbs.

    Acquisition Workstation
    Intel Core i3 Dual Core Processor 4330 (3.5GHz)
    4 GB, Non-ECC, 1333 MHz DDR3, OS Windows 7 64-bit
    1 TB hard disk in a Raid 1 (2 drives total)
    16x DVD +/- RW SATA optical drive
    Integrated Intel Graphics HD4600
    External datalink Bridge 1TB (RAID1) for Datalink Disaster Recovery
    Professional Monitor: 22 in. LCD, 2 MP, Resolution: 1920 X 1080 pixels, • Ratio: 1000:1 (typical)
    Acquisition Hardware – (3) Year Warranty included on Workstation and the Monitor

    Acquisition Software
    Viewers – 1 (LAN) Local Area Network and 2 (Web) Viewing Licenses
    DICOM Send - Multi Destination
    DICOM Print Image Archive
    CD/DVD Burning with Mini-Viewer
    DICOM Viewer with Robust Imaging Tool Sets Archive, Image Preview, Magnify, Zoom, Pan, Annotation Edit, Magnify, Zoom, Pan, Advanced Measurement and Specialty Chiropractic Measurement Tools, Window Level, Rotate, Repeat/Reject, L/R Marker, Un-sharp Mask.
    Disaster Recovery Service (DATALINK is included on all Medlink CR Systems) All systems are provided with a One Year 250GB (Approx. 24,000 14x17 Images or Approx. 8,000 Studies), Data Archive Service Plan with Automated and Monitored Backup to a Fully Managed HIPPA Compliant Disaster Recovery Service and includes a Licensed Datalink Bridge. Customer may increase the data plan at a fee and extend this service after year one.

  • Manufacturer: Medlink
  • Modality: X-Ray
