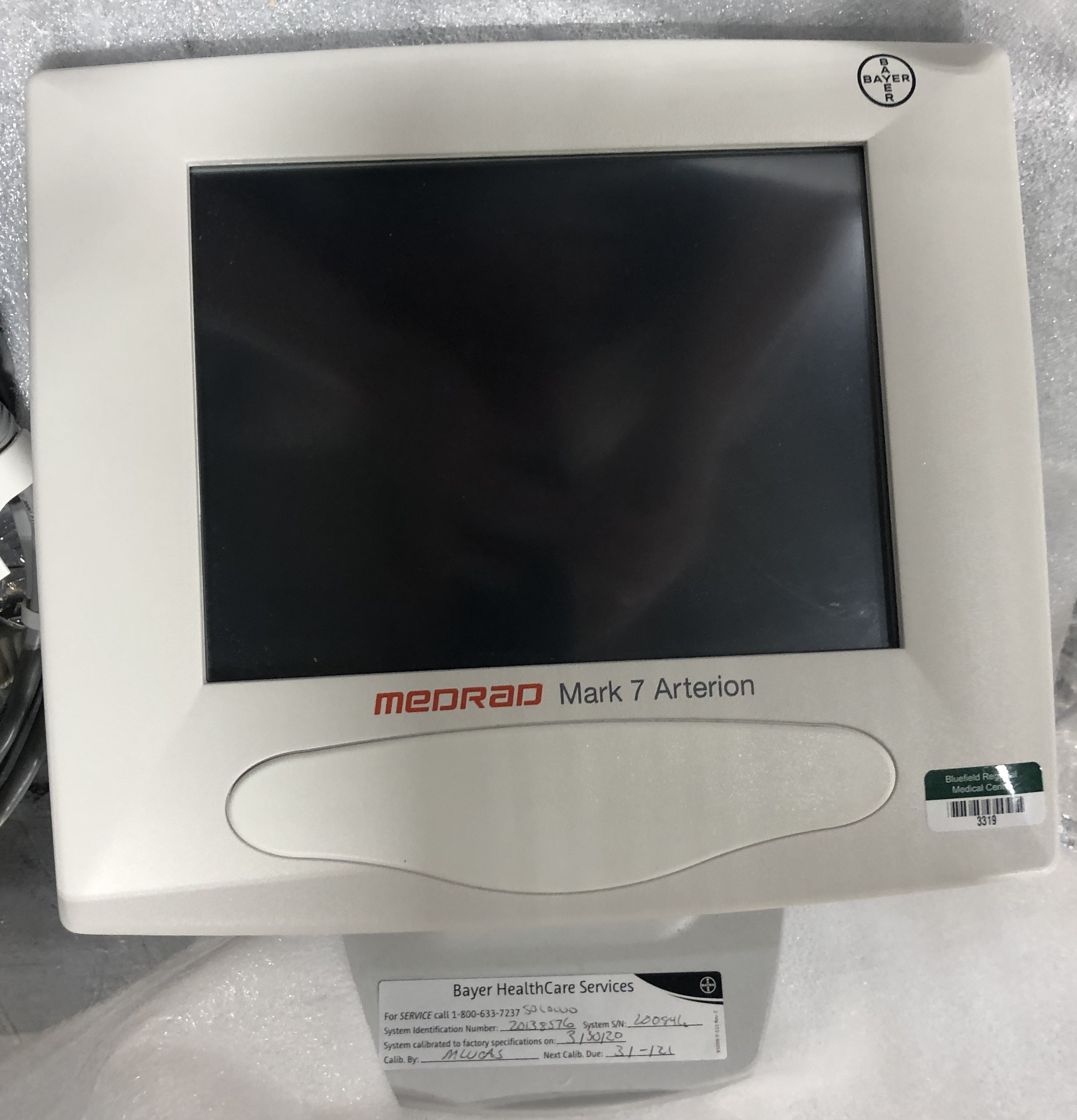

2015 Medrad Mark 7 Arterion Table Mount Injector [EQ-032210]

  • 2015 Medrad Mark 7 Arterion Table Mount Injector (EQ-032210)

    Performance & Injection

    • Flow Rates (Fixed): 0.1–45.0 mL/s (or up to 59.9 mL/min) in 0.1 increments

    • Flow Rates (Variable with VFlow): 1.0–10.0 mL/s in 0.1 increments

    • Injection Volume: 1–150 mL in 1 mL steps

    • Pressure Limits: 100–1200 psi (689–8273 kPa), in 1 psi steps

    • Rise Time: 0.0–9.9 sec (0.1 sec increments)

    • Delay Time: 0.0–99.9 sec (0.1 sec increments)

    • Phased Injections: Up to 4 phases

    Hardware & Ergonomics

    • Syringe Capacity: 150 mL disposable

    • Lightweight Design: ~16% lighter head, ~32% lighter pedestal

    • Dimensions: H=57.4″, W=22″, D=47.3″

    • Weight: ~146 lbs (66 kg)

    Memory & Interface

    • Protocol Memory: Stores up to 35 protocols

    • Injection History: Records ~50 previous injections

    • User Interface: Color touchscreen with armed/disarmed status

    Environmental & Certification

    • Operating Temp: 59°F–104°F (15–30°C), 20–75% RH

    • Storage Temp: -4°F–140°F (-20–60°C), up to 100% RH

    • Certifications: IEC/EN 60601-1/60601-1-2, CSA/UL, CE Mark

  • Manufacturer: Medrad
  • Modality: Cath/Angio
  • Year of Manufacture: 2015
