C-Arm Table Movements 1-5: What Do They Mean?

If you’re looking for a C-arm table, you’ve probably read expressions like "3-move" or "5-move" table the first time you searched. But what do all these numbers associated with C-arm table moves mean? We'll break down the basics of each number so that you can feel confident choosing the right C-arm for your facility.

Note: Block Imaging provides new and refurbished C-arm machines and parts in order to solve all the pain points listed above. You can read about it in detail below or reach out to our sales team to learn more about how it can help improve diagnostic imaging.

•    What Does Each C-arm Table Movement Number Mean?
•    What Does Each C-Arm Table Movement Do?
•    How Block Imaging Can Help You Determine Which C-arm You Need

Need to speak to a real person?

If you feel unclear about anything shared here, please do not hesitate to reach out to one of our team members. Their experience has guided our customers to finding the right system for them.

Contact Us


What Does Each C-Arm Table Movement Number Mean?

Each number represents how many unique movements the table can perform (In a way, each number also represents the price bracket each table lives in). Most fluoroscopy table manufacturers follow this same code when identifying their tables. Each number upward has all the same movements as the previous number, plus one additional movement. For example, a 4-move table can do everything a 3-move table can AND one more unique movement.

When looking for C-arm systems, it’s a good idea to pay attention to the specific names. For example, this Image Diagnostics Aspect 100-4T C-Arm Table has 4-way movement, which you probably could have guessed based on there being a “4” in the name.


What Does Each C-Arm Table Movement Do?

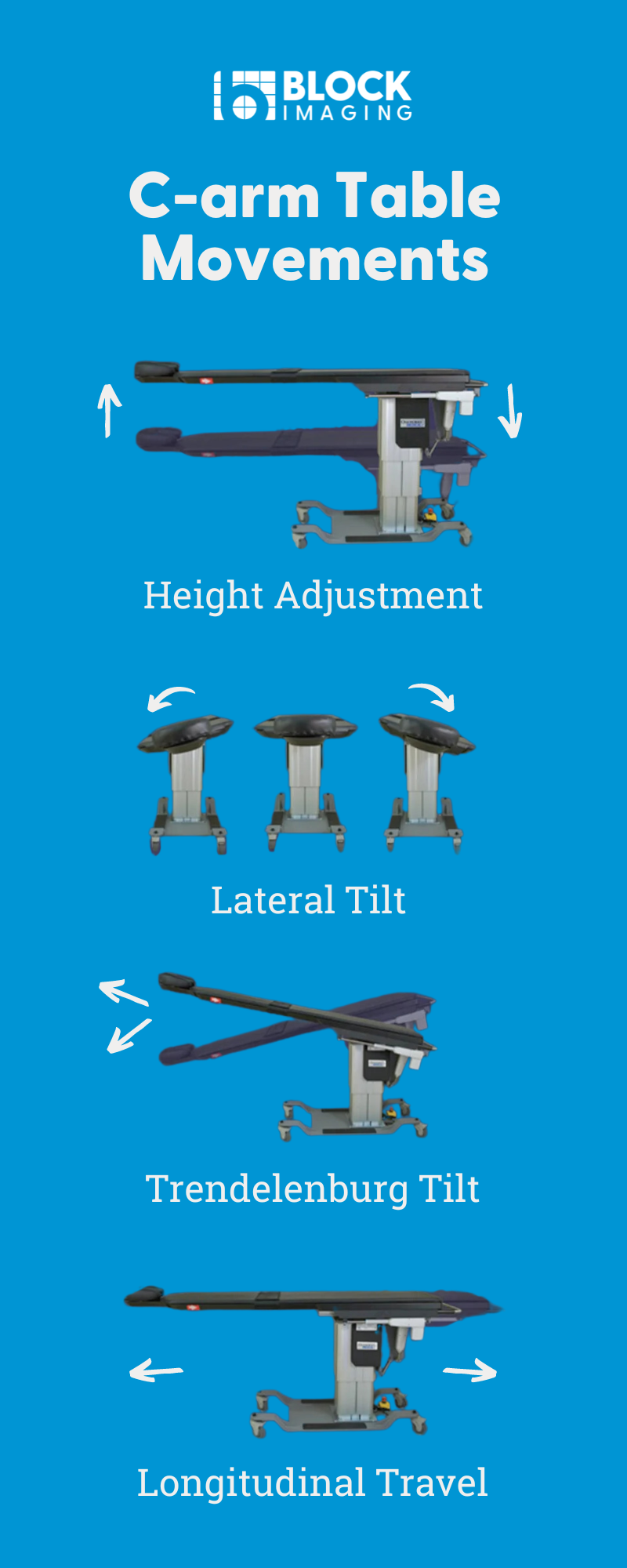

The Movements

1-Move: Height Adjustment: This moves the table straight up and down. Height range varies between manufacturers and models.

2-Move: Lateral Tilt: This allows the table to tilt from side to side. The degree of tilt also varies by manufacturer and model.

 3-Move: Trendelenburg Tilt: This tilts the table from head to foot. The degree of tilt also varies by manufacturer and model.

4-Move: Longitudinal Travel: Longitudinal Travel (or head to foot travel) moves the C-arm tabletop head to foot over the central column. The range of movement represented in inches varies between manufacturers and models.

Beyond movements 1-4, are 5-move and float-top tables.

C-arm Table Movements (2)


5-Move: Lateral Travel

Lateral Travel (or side to side travel) moves the c-arm table top side to side over the central column. The range of movement represented in inches varies between manufacture and models


A float-top table adds diagonal movements to the 5-move configuration. These tops unlock, glide in all directions for maximum flexibility, and then lock back into place.


How Block Imaging Can Help You Determine Which C-arm you Need

However many movements your facility needs from its C-arm surgical table, we're ready to help. Our project managers, customer service representatives, and product specialists will go above and beyond to provide a solution that best meets your needs.

Our C-Arm Buyer’s Guide also lays out all the components to choosing a C-arm for your facility. If you have more questions or would like a quote, reach out to us!


Click here to download your guide
