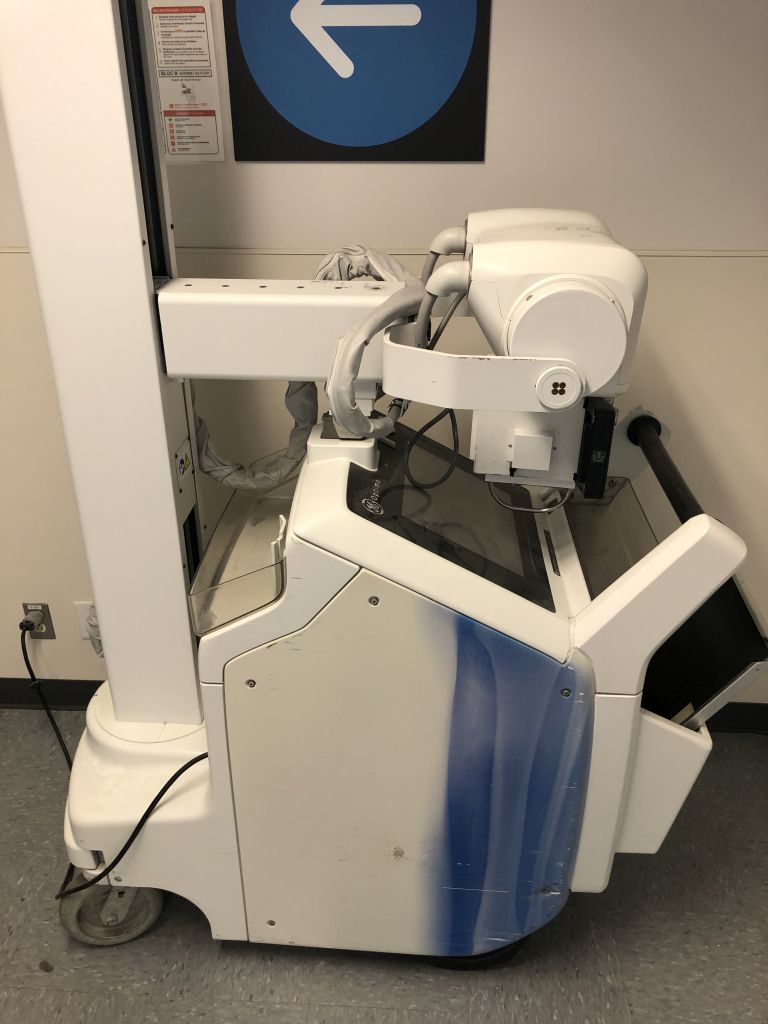

Light Weight 970 LBS 15KW Generator Digital touch screen KVP and MA Designed for 24/7 availability. Use with battery or make and process exposures while the unit is charging. Automatic charging algorithms allow the system to be re-charged even if batteries are not fully drained. System can be used without the detector for manual film or CR exposures Nominal Tube Voltage (Radiographic) 40 ~ 150 kV Nominal Focal Spot size (IEC 60336): Large Focus: 1.2 mm; Small Focus: 0.6 mm Anode Rotation Speed (minimal): 3200 min-1 Permanent Filtration: 0.9 mm Al/75 kV IEC60522: 1999 Maximum X-ray Tube Current: Large Focus: 500 mA; Small Focus: 200 mA Maximum Continuous Heat Dissipation: Without Air-circulator: 170 W (238 HU/s) Maximum anode heat units: 140 kHU Exposure time: 4.0 msec – 6.0 sec Capable of 100-240 V nominal, 50/60 Hz operation System battery status display
